Ozone & Oxygen Sensors
Precision Ozone
Analysis Without
Compromise
Save time on environmental and industrial monitoring with the world's smallest, laboratory-grade UV ozone analyzer.
Trusted by
Technological
Evolution
We re-imagine sensor products and systems that improve the environments we live and work in.
Senslogix has successfully miniaturized the traditional UV Ozone analyzer into a super-portable, low-maintenance, handheld product.
Products
The UVO range
Tiny, yet mighty.

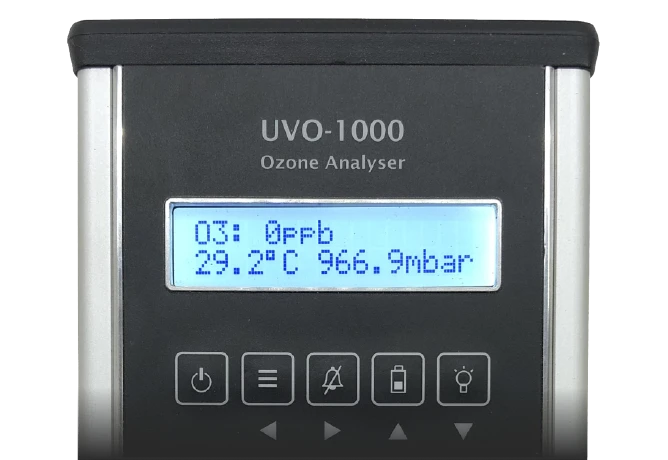

The state-of-the-art, laboratory-precision UVO-1000 combines two analyzers in one – measuring from environmental and workplace safety levels with 1 ppb precision to industrial process concentrations up to 1000ppm.
The UV absorption method ensures accurate and stable measurements, with ranges of 0 to 1000ppm and a 1ppb precision (UVO-1000), 0 to 10,000ppm (UVO-10k) and 0 to 20% (300g/m3) (UVO-20PC.)
The rapid 1 min warm-up period saves valuable time and increases productivity.
The ultra-portable, handheld form factor with internal 8-hour battery allows quick, simple deployment.
With a long-life pump and long-life solid-state LED source, they support a low-maintenance regime.
Humidity equalization technology is used to give the most stable, accurate results.
Logged data can be uploaded to a laptop or mobile phone for graphing and reporting.
Precision
Engineering for a better world
Senslogix produces a suite of innovative gas detection products and systems that monitor the operational, safety and the control of levels of gases in Industrial, Medical and Environmental sectors.
Ozone Monitors
Handheld and Fixed Electrochemical sensors / controllers
These devices provide an economical range of precision sensors for environmental, medical and industrial applications.
FAQs
Learn more about the most common questions regarding Ozone devices.
- When I need the long-term stability and precision measurements in the ppb range to assure health and safety levels.
- For high level (> 100ppm) measurements where low-cost methods eg electrochemical sensors cannot handle the high levels reliably and in a stable fashion.
- When using very high levels of ozone (eg 20% or 300g/h), other sensor methods are not usable.
We manufacture both handheld and wall-mount UV and electrochemical ozone analyzers.

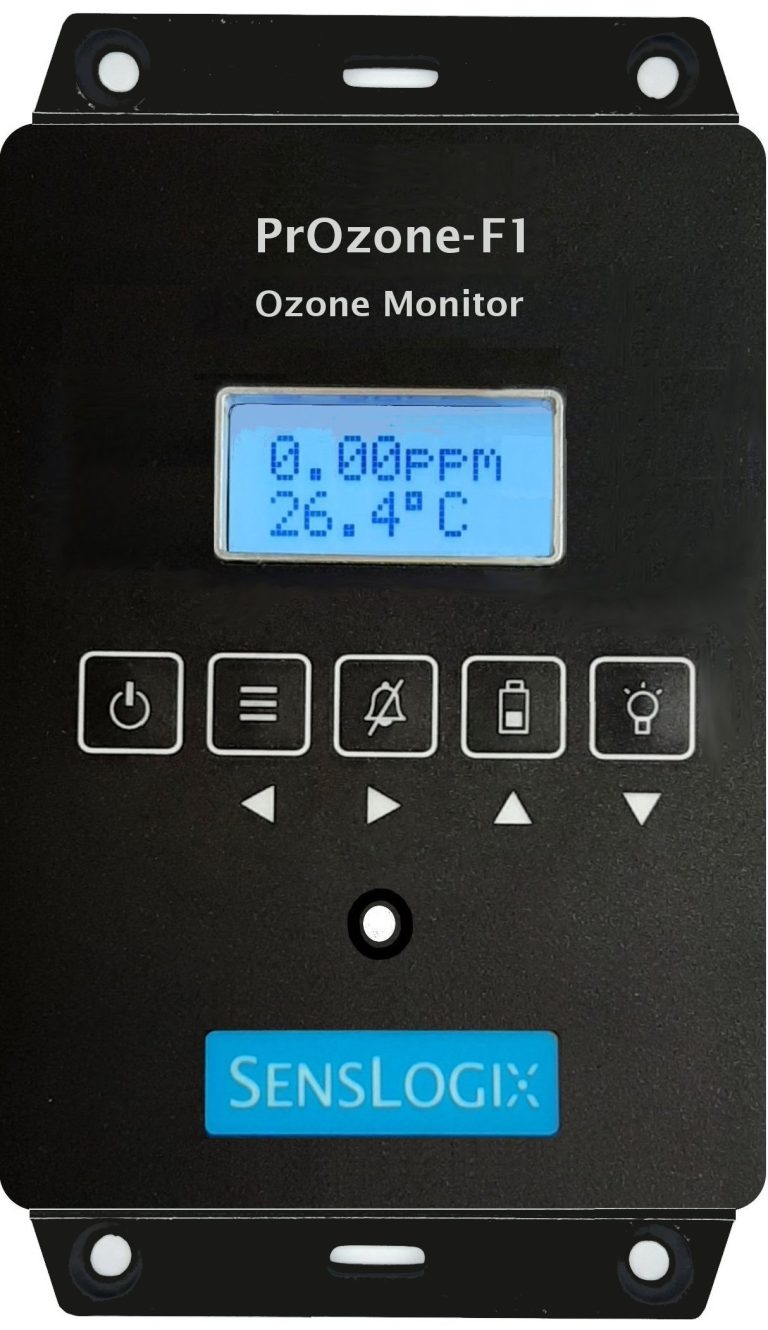

Both our electrochemical and UV wall-mount ozone analyzers have analog outputs and 2 relays which can be used to control ozone generators.
Our electrochemical analyzer is supplied from an 8 to 28V DC supply.
Our UV ozone analyzer is supplied from either a 12 to 28V DC supply or 110V to 220V AC supply.
Our UV analyzers have been designed for long life and low maintenance and can last a decade or more. We offer a long lifespan pump (> 15,000 hours) and UV source (100,000 hours.) If the scrubbers are not contaminated they can last many years. The only component that should be changed annually are the low-cost filters.
Our electrochemical analyzers can last many years. The sensors used in our electrochemical analyzers have a minimum lifespan of 3 years. The sensors can be replaced as required.
